48v to 5v 5A-20A DC-DC Converter 48v to 5v Buck Converter Step down Converter

WHY CHOOSE US

  • Check Mark low price
  • Check Mark stable performance
  • Check Mark safety, reliability
  • Check Mark long service life
Category:

Description

48v to 5v 5A-20A DC-DC Converter 48v to 5v Buck Converter Step down Converter

Feature

1. Synchronous rectification technology, imported components, conversion efficiency more than 96% 2. Imported internal resistance capacitor filter, withstand high temperature. 3.Flame retardant aluminum shell, Almost no heat generated when using 4. Chip smart protection, anti-overheating, overcurrent protection

Specification

Input
Rated voltage
DC 48V

Voltage range
30-60V

Efficiency
96% @ 48V input

Positive cable (red)
16 AWG @ 15cm length

Negative cable (black)
16 AWG @ 15cm length
Output
Voltage
5V

Max. rated current
5A-20A

Max. rated power
25W-100W

Positive cable (yellow)
16 AWG @ 15cm length

Negative cable (black)
16 AWG @ 15cm length
Environment
Working temperature
-40℃ ~ 80℃

Storage temperature
-40℃ ~ 80℃
Function
Short circuit protection
YES

Over current protection
YES

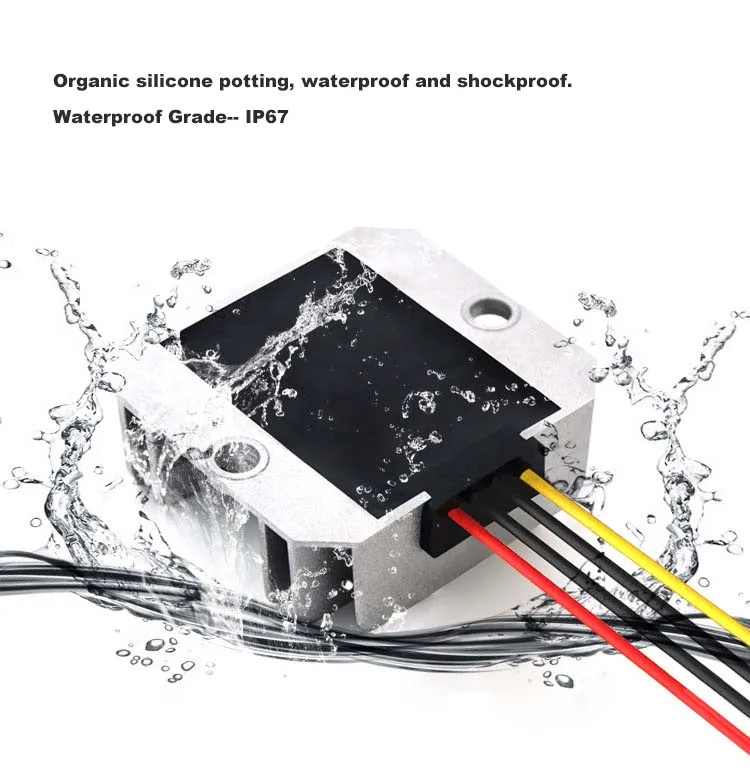

Waterproof
IP67

Over temperature protection
YES

Over voltage protection
YES
Mechanical
Weight
160g

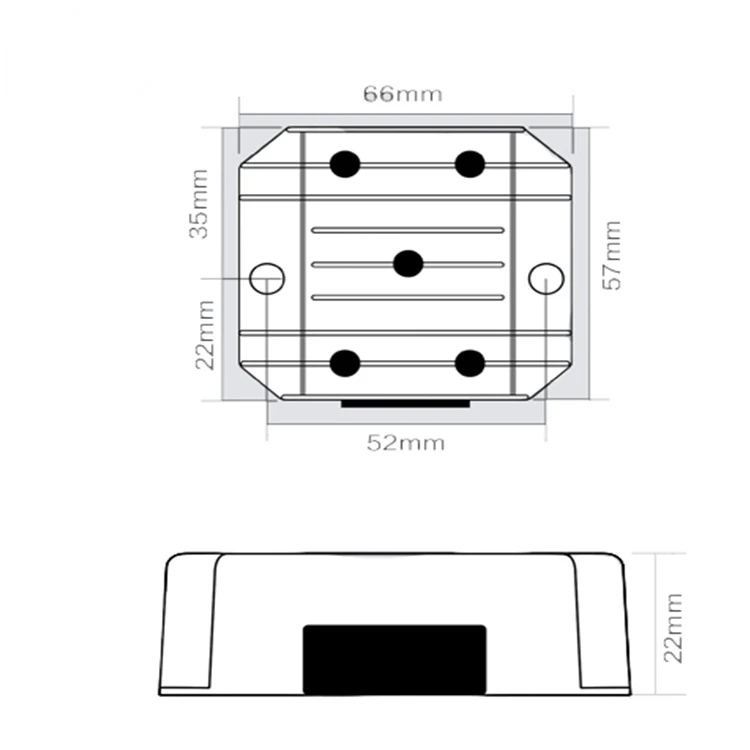

Size
66*58*23mm











Notes:

Please connect the polarity correctly, or the converter will be burnt.

This DC/DC Converter can’t work as solar controller or wind controller.

Other Policies 1. We are not responsible for any custom duty or import tax. 2. All emails will be answered within 24 hours. If you don’ t receive our reply, please kindly re-sent your email and we will reply to you asap. Packaging and Shipping 1.Product will be shipped within 1-2 business day after full payment is received and verified. 2. The transportation time is uncontrollable. Please wait patiently and continue to pay attention to the package dynamics. If you have any questions, please contact me immediately. Delivery Tips When you place an order, please choose a shipping method and pay for the order including the shipping fee (freight does not include any customs duties and other customs charges). Please fill out the complete consignee name, address, telephone number, zip code,tax number. When the goods import into your country, at the time of delivery may produce some import tariffs and other customs fees because of the different national regulations, So the buyer will be responsible for tariffs and other customs fees. However, in our experience, this cost are rarely occur in small batch orders like us Feedback 1.We rely on our reputation and customer satisfaction to succeed. Therefore,your feedback is extremely important to us. Please leave good feedback to us if you are satisfied with our goods and service. 2. If you are unsatisfied with any aspect of our service,please send me a message us before leaving any negative feedback or opening anydispute on the site. We will help you solve the problem.




#detail_decorate_root .magic-0{width:750px}#detail_decorate_root .magic-1{overflow:hidden;width:750px;height:300px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-2{margin-top:0;margin-left:0;width:750px;height:300px}#detail_decorate_root .magic-3{overflow:hidden;width:750px;height:84px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-4{margin-top:0;margin-left:0;width:750px;height:84px}#detail_decorate_root .magic-5{vertical-align:top}#detail_decorate_root .magic-6{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-7{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-8{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-9{font-size:16px}#detail_decorate_root .magic-11{width:750px;border-collapse:collapse}#detail_decorate_root .magic-12{min-height:28px;padding:5px 10px;width:127px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-13{text-align:left}#detail_decorate_root .magic-14{font-family:inherit;font-style:inherit;font-variant-ligatures:inherit;font-variant-caps:inherit}#detail_decorate_root .magic-15{min-height:28px;padding:5px 10px;width:577px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-16{display:none}#detail_decorate_root .magic-17{min-height:28px;padding:5px 10px;width:245px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-18{min-height:28px;padding:5px 10px;width:312px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-19{min-height:28px;padding:5px 10px;width:244px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-20{overflow:hidden;width:750px;height:85px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-21{margin-top:0;margin-left:0;width:750px;height:85px}#detail_decorate_root .magic-22{overflow:hidden;width:750px;height:750px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-23{margin-top:0;margin-left:0;width:750px;height:750px}#detail_decorate_root .magic-24{overflow:hidden;width:750px;height:798.4177215189874px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-25{margin-top:0;margin-left:0;width:750.0000000000001px;height:798.4177215189874px}#detail_decorate_root .magic-26{overflow:hidden;width:750px;height:782px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-27{margin-top:0;margin-left:0;width:750px;height:782px}#detail_decorate_root .magic-28{overflow:hidden;width:750px;height:468.75px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-29{margin-top:0;margin-left:0;width:750px;height:468.75px}#detail_decorate_root .magic-30{margin-bottom:10px;line-height:0}#detail_decorate_root .magic-31{margin-bottom:0}#detail_decorate_root .magic-32{position:relative;width:100%}#detail_decorate_root .magic-33{overflow:hidden;width:750px;height:99px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-34{margin-top:0;margin-left:0;width:750px;height:99px}#detail_decorate_root .magic-35{overflow:hidden;width:750px;height:792px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-36{margin-top:0;margin-left:0;width:750px;height:792px}#detail_decorate_root .magic-37{overflow:hidden;width:750px;height:913px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-38{margin-top:0;margin-left:0;width:750px;height:913px}#detail_decorate_root .magic-39{overflow:hidden;width:750px;height:790px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-40{margin-top:0;margin-left:0;width:750px;height:790px}#detail_decorate_root .magic-41{margin-bottom:10px;overflow:hidden}

window.adminAccountId=238891352;

Additional information

Color

Silver

Input Voltage

48V

Output Voltage

5V

is_customized

Yes

Output Current

10A

Output Frequency

100W

Weight

160g

Size

69*58*23mm

Output Type

Single

Output Power

51 – 100W

Model Number

DC/DC Converters

Type

DC/DC Converters

Brand Name

kangwobei

Origin

Mainland China

Certification

CE

Network

NO

Customized support

YES

Place of Origin

Guangdong, China

Certificate

CE, CE

Product Name

DC DC converter

Efficiency

96%

Shell material

Aluminum

Feature

Motor, audio, LED display, electric fans and industrial equipment

OEM

SUPPORT

Output

5V 10A

Warranty

1 Year

Protections

Smart chip protection, anti-overheating, overcurrent protection
